Material Handling Equipments

Material Handling Equipment

CTR


CTR Manufacturing Industries Ltd. established in 1964 are market leaders in the
manufacture and marketing of Engineering and Electronic products with manufacturing
facilities at pune, Aurangabad and Nashik in india. After Sales Service Offices nationwide.

Product Types

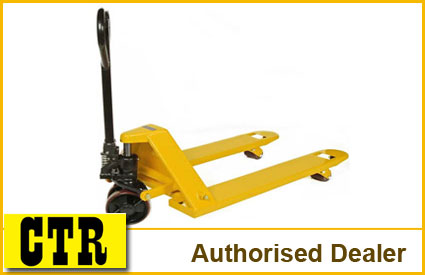

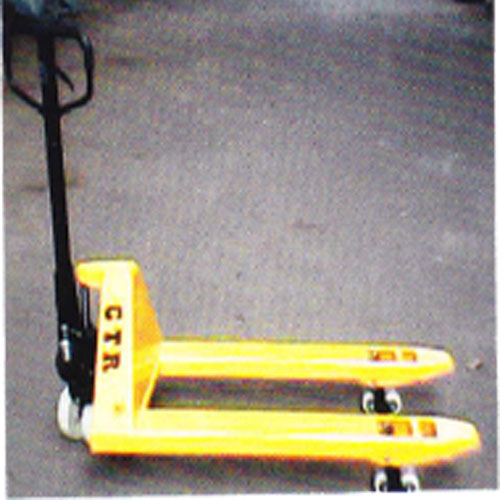

HAND PALLET TRUCK


Model CHPl CFIP3 CHP4 CHP5 CHP6
Capacity 500 2000 2500 3500 5000
Total Lift Height 150 185 185 185 205
Fork Length 800 1220 1220 1220 1200
Min Height 60 85 85 90 90
Width Over Fork 380 550/685 550/685 550/685 685
Service Weight 35 75 75 100 110

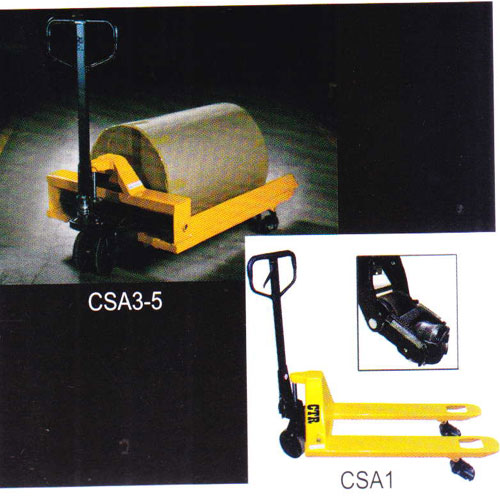

SPECIAL FUNCTION HAND PALLET TRUCK


Model CSA1 CSA2 CSA3 CSA4 CSA5
Special Feature Traverse Movement Narrow width Reel Carrier Brake System Reel Carrier
Capacity 2500/1 500 2000 1000 2500 1800
Total Lift Height 190 190 160 185 160
Fork Length 1200 800 1150 1220 1350
Dia. of Reel/bale N/A N/A 750/1200 N/A 800/1400
Min. Fork Height 75 75 40 85 50
Widih Over Fork 550/685 320/390 965 550/685 1030
Service Weight 80 65 135 75 155

HIGH LIFT PALLET TRUCK


Model CHL1 CHL3
Capacity 1000 1000
Total lift Height 800 800
Min. Fork Height 85 85
Fork Length 1150 1240
Width Over Fork 520/685 550/685
Service Weight 110 180

* Battery operated

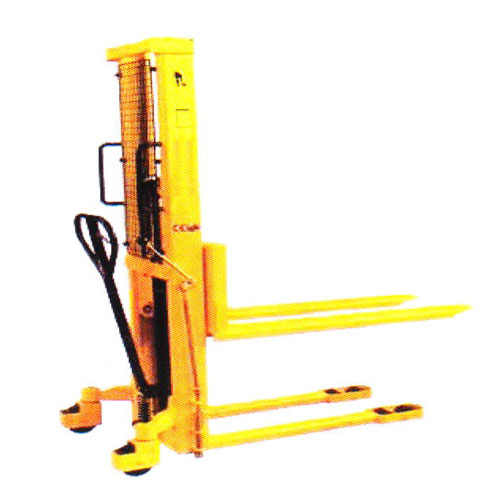

MANUAL STACKER


Model CMS3 CMS4 CMS5 CMS6 CMS7 CMS8
Capacity 1000 1000 1000 1500 1500 2000
Total lift Height 1600 2500 3000 1600 2500 1600
Min. Fork Height 90 90 90 90 85 90
Width Over Fork 550 550 550 550 560 320-740
Service Weight 230 285 307 245 285 270

* Please suffix model nr. with 'A' for stacker with adjustable fork width.

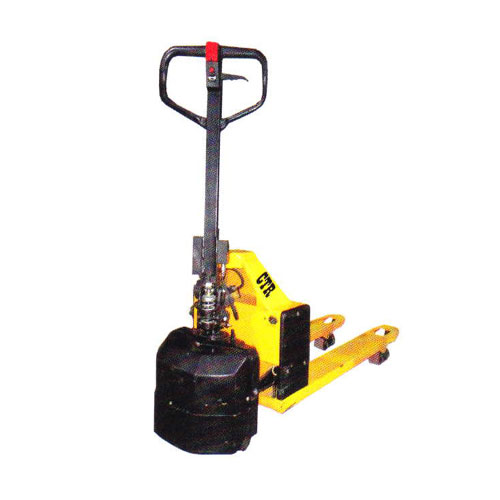

SEMI ELECTRIC PALLET TRUCK : WALKY TYPE


Model CEP1SE CEP2SE CEP3SE
Capacity 1000 1500 2000
Total lift Height 185 200 190
Min. Fork Height 85 85 85
Fork Length 1150 1150 1220
Turning Radius 1560 1515 1515
Battery V/Ah 24/38 24/65 24/80
Service Weight 150 200 240

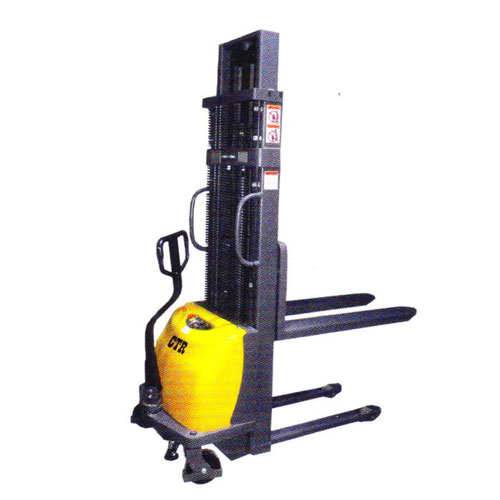

SEMI ELECTRIC STACKER : STANDARD


Model CSE1S CSE2S
Capacity 1000 1500
Total lift Height 1600/2500/3000/3300
Min. Fork Height 90 90
Overall Height 2090/1840/2090/2200
Fork Length 1070 x 170 x 60
Turning Radius 1340 1340
Battery V/Ah 12/200 24/200
Service Weight 420/480/500/550 580/660/680/700

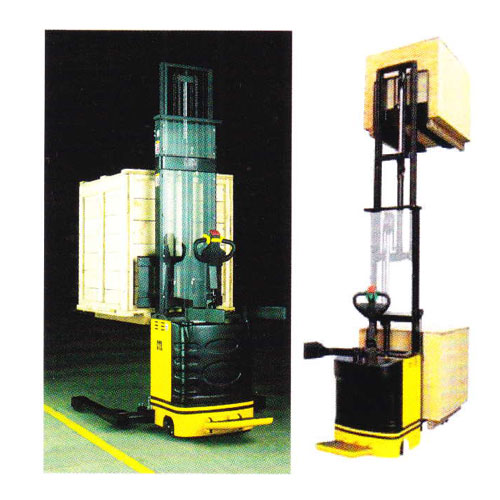

FULL ELECTRIC STACKER


Model CFE1 CFE2 CFE3 CFE4
Capacity 1000 1500 2000 1500
Turning Radius 1525 1605 1655 1786
Total Lift Height 1600-3300 1600-5600 2500-5600 2500-5600
Min. Fork Height 90 90 90 95
Fork Length 1070 1070 1070 1100
Width Over Fork 580/695 570/580/695 570/695 580/650
Battery V/Ah 24/120 24/200
24/300		 24/300 24/240
24/300
Facility Single Pallet Single Pallet Single Pallet Double Pallet
Service Weight 650/760 780/1370 1550/1740 1040/1250

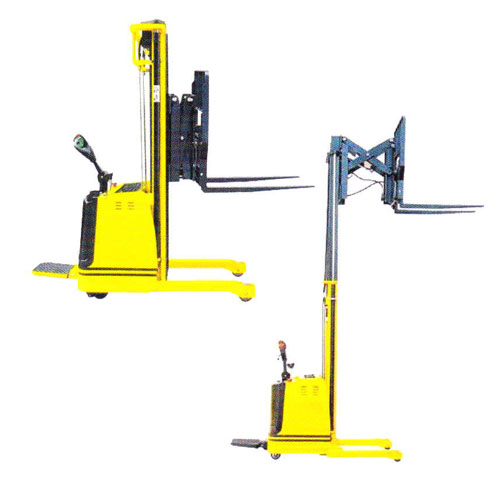

FULL ELECTRIC REACH STACKER


Model CER1 CER2 CER3
Capacity 1250 1500 2000
Turning Radius 1750-1780 1700-1730 1800-1830
Load Centre 500
Total Lift Height 2500-5500
Free Lift Height From 4500 mm (1575/1700/1825)
Reach Extent 500
Travel Speed 4.5-5 kmph
Lifting Speed 0.1/0.18 m/s
Fork Size 1070 x 100 x 35
Fork Width Adjustable (200 - 800)
Service Weight 1405 - 2750

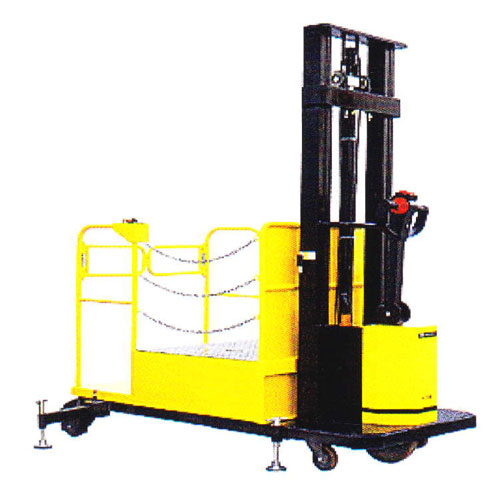

ORDER PICKER


Model COP1E COP1SE COP2E COP2SE
Capacity 300 200 300 200
Total Lift Height 3000 3500 3500 4000
Overall Size 1530x700
x1950		 1310x760
x1760		 1530x700
x2200		 1310x840
x2040
Up/Down Speed 20/12 sec 19/17 sec 24/26 sec 22/25 sec
Battery Volts 2x12/120 12/120 2x12/120 12/120
Service Weight 575 265 590 315

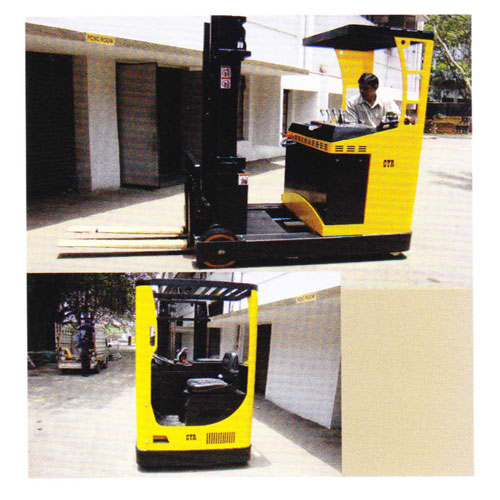

REACH LIFT TRUCK


Model CRL1 CRL2 CRL3 CRL3H
Capacity 1000 1500 2000 2000
Total Lift Height 3000/5000/6200 3000/5000/6200 3000-9500 10200/11100/12000
Max. Mast Height 36800/5800/7000 3800-10300 12800
Min. Mast Height 2086/2240/2640 2086-3890 4190/4490/4790
Ground Clearance 80 80 80 80
Fork Dimensions 1070 x 100 x 36 1070 x 100 x 40 1070 x 100 x 50 1070 x 100 x 50
Turning Radius 1700 1700 1820 1920
Overall Width 1020 1100 1260-1510 1510
Lifting Speed()laden/unladen 0.19/0.20 0.24/0.30
Battery V/Ah 48/400 48/400 48/500 48/500
Operator Standing Standing Seated Seated
Service Weight 2100/2500/2600 2300/2700/2800 3300-4240 4840

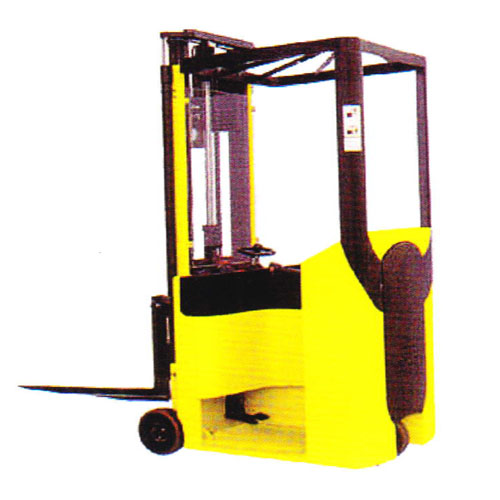

NARROW AISLE FORKLIFT


Model CNA1 CNA2
Capacity 1000 1500
Turning Radius 1200/1300 1715/1735
Total Lift Height 3000/5000 5000/6000
Max. Mast Height 3565/5600 5520/6400
Min. Mast Height 2150/2255 2200/2600
Overguard Height 2090 2255/2400
Ground Clearance 50 80
Lifting Speed 0.11/0.15 kmph 0.15/0.18 kmph
Battery Volts 24/360 24/400
Service Weight 2050/2175 960-2650

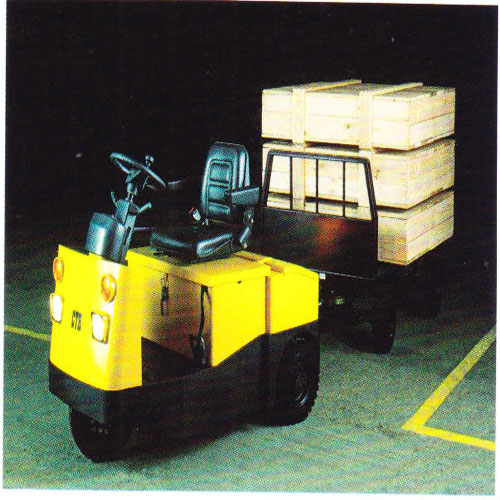

ELECTRIC TOW TRUCK


Model CTT1 CTT2 CTT3 CTT4 CTT5
Capacity 2000 3000 5000 6000 10000
Drawbar Height 280/350 280/350 280/350 280/350 320/400
Ground Clearance 100 100 100 100 138
Turning Radius 1520 1520 1650 1650 2200
Travel Spped 8 kmph 7 kmph 8 kmph 7 kmph 6.5 kmph
Overall Length 1720 1720 1940 1940 2485
Overall Width 970 970 1100 1100 1160
Battery V/Ah 48/240 48/270 48/360 48/400 48/500
Service Weight 930 980 1160 1280 1390

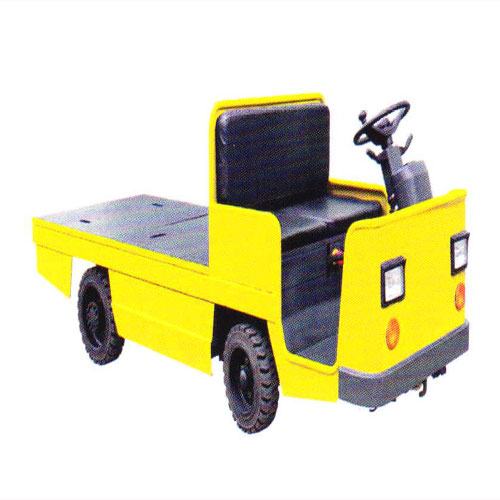

ELECTRIC PLATFORM TRUCK


Model CPT1 CPT2 CPT3
Capacity 2000 2500 3000
Platform Size 2000/1250 2000 x 1100 2240 x 1400
Overall Size 3200 x 1250 3150 x 1100 3440 x 1400
Ground Clearance 160 90 160
Travel Speed 11 kmph 9 kmph 11 kmph
Turning Radius 3200 3000 3400
Battery V/Ah 48/330 48/250 48/395
Service Weight 1450 1300 1750

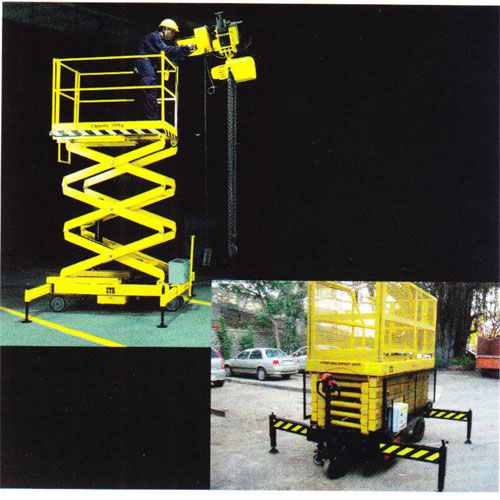

HIGH RAISED LIFT TABLE


Model Total Height Load Capacity Min Height Platform Size Service Weight
CLT1 3000 500 900 1400 x 700 350
CLT2 4500 500 950 1500 x 850 400
CLT3 6000 500 950 1800 x 1000 750
CLT4 7500 500 1100 1800 x 1000 900
CLT5 9000 500 1500 1800 x 1000 1200
CLT6 1100 500 1650 2100 x 1150 1400
CLT7 12000 500 1750 2450 x 1350 1850
CLT8 14000 500 1900 2450 x 1350 2000
CLT9 16000 500 1980 2750 x 1500 2300

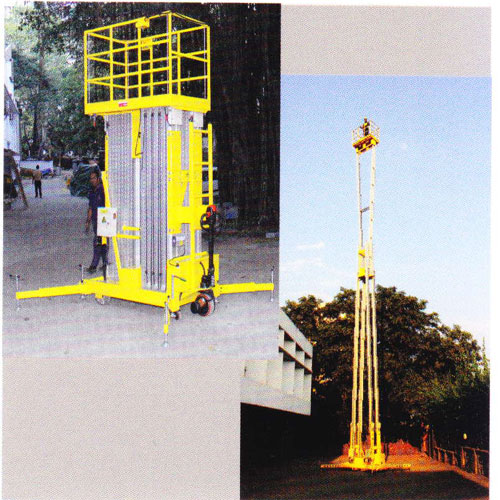

ALUMINIUM AERIAL WORK PLATFORM


Model Total Height Load Capacity Min Height Platform Size Service Weight
CAW1SM 4000 125 1650 600 x 550 x 1000 230
CAW2SM 6000 125 1800 600 x 550 x 1000 280
CAW3SM 8000 125 1900 600 x 550 x 1000 300
CAW4SM 9000 125 2000 600 x 550 x 1000 480
CAW5MM 6000 200 1700 1360 x 600 x 1000 390
CAW6MM 8000 200 2060 1360 x 600 x 1000 450
CAW7MM 9000 200 2060 1360 x 600 x 1000 490
CAW8MM 10000 200 2060 1360 x 600 x 1000 550
CAW9MM 12000 200 2100 1360 x 600 x 1000 650

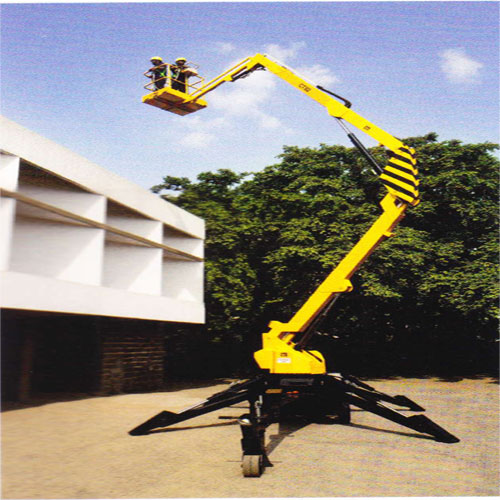

HIGH LIFT PLATFORMS


Model CTB1 CTB2 CTB3
Total Working Height , M 11.8 16.2 19.8/23.8
Total Platform Height, M 10 14.2 18/22
Load Capacity, kg 215 215 100
Horizontal Reach, M 3.6 8.6 12
Turntable Rotation, Degree 355 355 355
Platform Size, M 1.2 x 0.6 x 1.1 1.2 x 0.8x1.1 1.5 x 0.8 x 1.1
Overall Size,M 5.6 x 1.2 x 2.0 7.5 x 1.58 x 2.50 7.9 x 1.6 x 1.9
Hydraulic Motor Power, KW 1.5 2.2 2.2
Max Wind Speed, m/s 7.9 10.7 7.9
Lifting Method AC Power, 3 Phase Dual Power:Diesel Engine/Electric
Drive Method Towing
Lifting Type Articulated Boom Telescopic Boom
Service Weight 1200 2800 3850

Material Handling Equipment

Premier

To improve the productivity, movement of goods in the industry happens with Material Handling Equipment (MHE). We offer a complete range of CTR and PREMIER make material handling equipments. We offer from basic sturdy Hand Pallet Trucks to advance electronically operated Forklifts. All manufactured adhering to the international standards, considering operation in domestic conditions. Every product is backed by competent technical personnel and service facilities.



Product Types

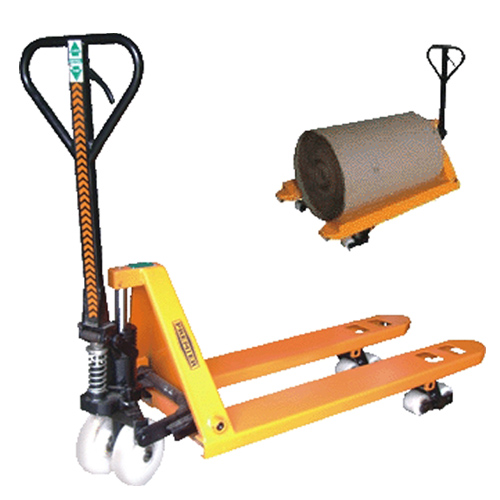

Hydraulic Pallet Truck

Capacity - 2000 Kg.

  1. AN IDEAL EQUIPMENT FOR ALL TYPES OF INDUSTRIES.
  2. WE ALSO MAKE CUSTOM BUILT PALLET TRUCKS AS PER CUSTOMERS REQUIREMENTS.

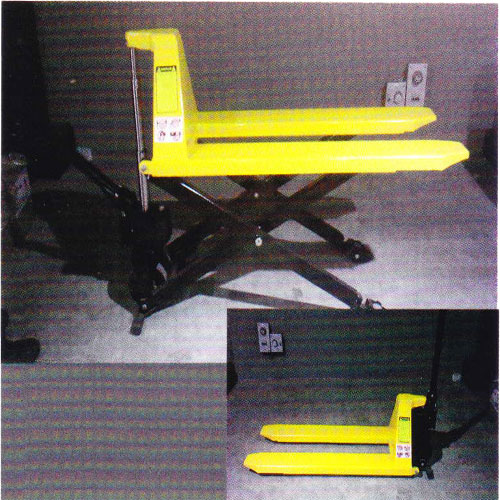

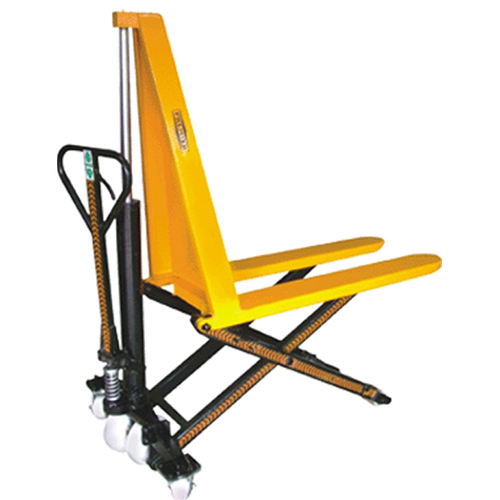

High Lift Scissor Pallet Truck

Capacity - 1000 Kg.
Lift Height : 800 mm
  1. Lift - 14 mm per stroke :: Weight - 160 to 170 Kg
  2. Fitted with Hard Polymer Wheels with sealed ball bearings
  3. Steering Wheels - Dia 200 x 50 mm - 2 Nos.
  4. Rear Rollers - Dia 82 x 90 mm - 2 Nos.
  5. Swivel Castors - Dia 100 x 50 mm - 2 Nos.
  6. BATTERY OPERATED MODEL IS ALSO AVAILABLE

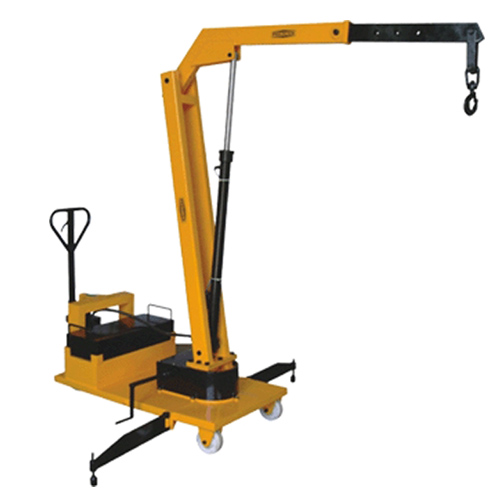

Hydraulic Floor Crane Counter Balanced Type With Rotating Swiveling Boom

Capacity - 500 Kg.
Lift Height : 2500 mm

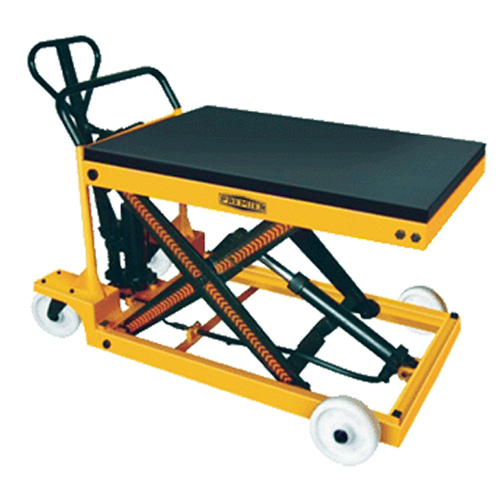

Scissor Lifts Mobile On Wheels

Capacity - 500 & 1000 Kg.

  1. SS Stands for single scissor, stationery type.
  2. In case of single scissor, stationery type, Pump or Power Pack is connected to scissor lift by flexible hose & power pack, size @ 400 x 400 is kept near scissor lift at any convenient place.
  3. In case of single scissor, mobile type, please mention SM in case of SS
  4. Minimum and Maximum height in case of mobile type scissor increases by 50 mm for wheel ground clearance.
  5. Overall size in case of mobile type scissor increases by L + 400 mm & W + 200 mm for accommodation of pump unit and wheels.

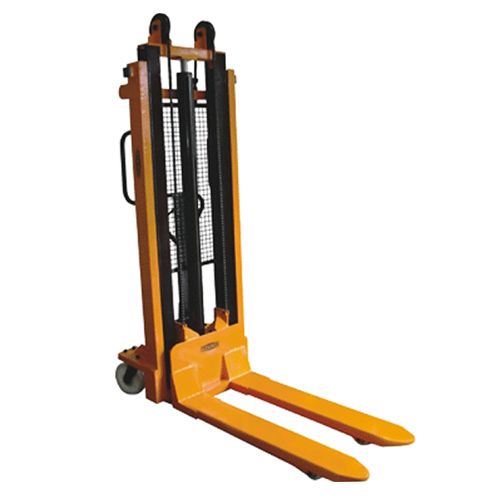

Hydraulic Stacker

Capacity - 500 & 1000 Kg.
Lift : 1500, 2500 & 3000 mm
APPLICATIONS
  1. Used in press shops for loading & unloading of heavy die punches.
  2. Used in plastic and rubber industries for loading and unloading of moulds.
  3. Used in stores for stacking of materials, trays, boxes etc.
  4. Used in transport godowns, warehouses for material loading in trucks.
  5. Used in engineering industries for handling of heavy jobs, plates on various machines like CNC, VMC, Lathe, Milling, Shaping machine etc.

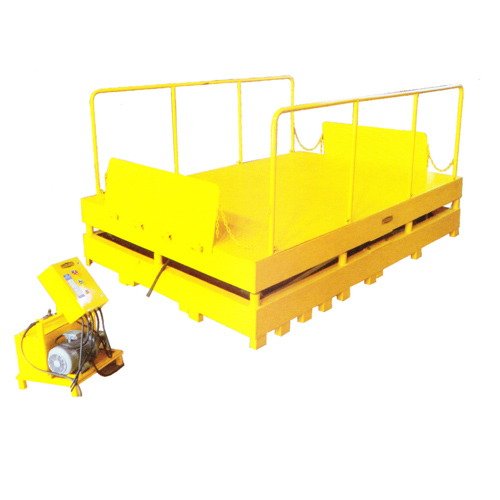

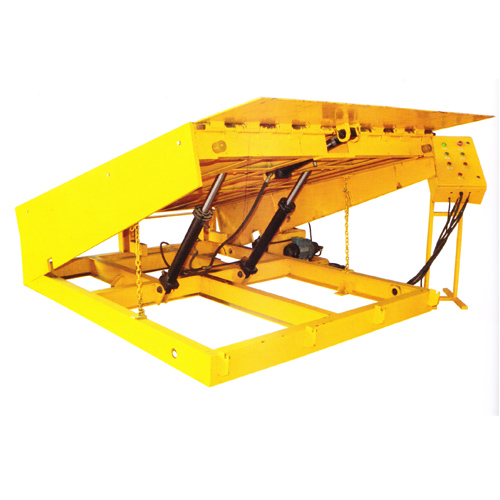

Hydraulic Dock Leveler

Capacity - 5000 kg & 9000 kg.

Hydraulic Scissor Lift

Capacity - 500 kg.
Lift : 9000 kg.

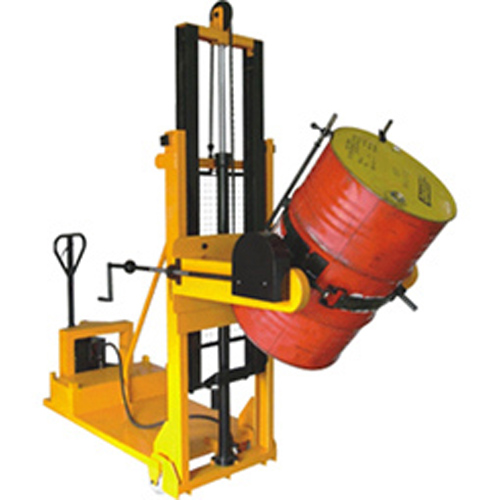

Counter Balanced Hydraulic Drum Lifter & Tilter

Capacity - 300 Kg.
Lift : 1500, 2500 & 3000 mm

APPLICATIONS
Widely used for pouring oil, liquid, chemicals from one drum to other drum, in machine hopper, in reaction vessel, in plastic injection m/c hopper, in sand moulding m/c hopper etc.
  1. Largely used in chemical industries to handle hazardous chemicals.
  2. Extensively used in paint & dye industries during mixing processes.
  3. Widely used plastic industries to pour plastic powders, pigments, granules in injection moulding m/c hopper.

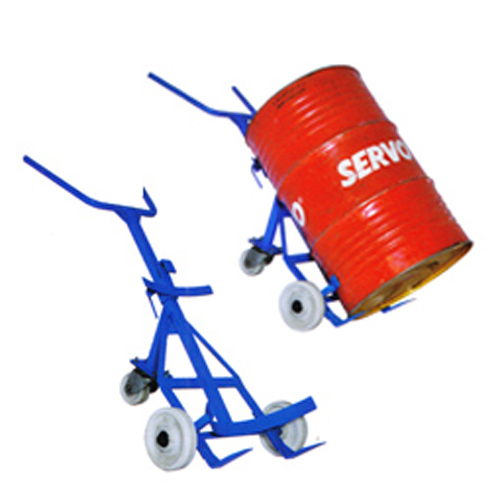

Drum Trolley

Capacity - 300 Kg.
This trolley is designed for easy movement of 210 lit of drums from one place to other in chemical factories, oil depots, factories etc. The trolley is fabricated from m.s. angle 40x40x6 mm m.s. flats and 1" A class m.s. pipe.
  1. Load Carrying Capacity - 300 Kg.
  2. Trolley Self weight - @ 45 Kg.
  3. Wheels fitted - Dia 200 x 50 mm - 2 Nos.
  4. Swivel Castor 125 x 50 mm - 1 No.
  5. Overall Size - L 1550 x W 650 x H 850 mm

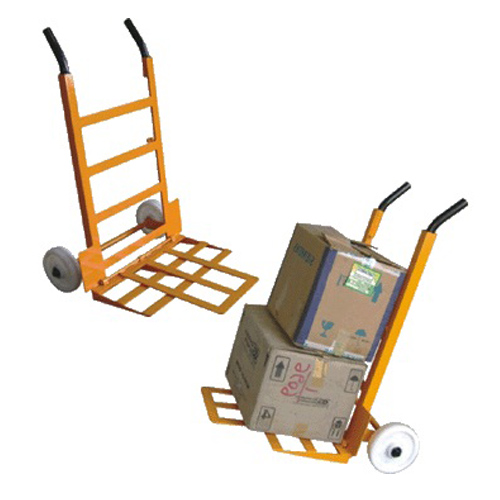

Multi Utility Trolley

Capacity - 300 kg.
This trolley is designed for easy movement of corrugated boxes. The trolley is fabricated from angle 40 x 40 x 2.5 with 1" pipe handle. The front nose is @ 300 mm long with ribbed at bottom for additional strength.
Additional hinged platform is provided for extra width boxes as a bottom support.
  1. Load Carrying Capacity - 300 Kg.
  2. Overall Size - L 1100 x W 600 mm.
  3. Nose length - 300 mm.
  4. Hinged Platform Length - 450 mm
  5. Self weight - @ 25 Kg.
  6. Wheels - Dia 200 x 50 mm - 2 Nos.

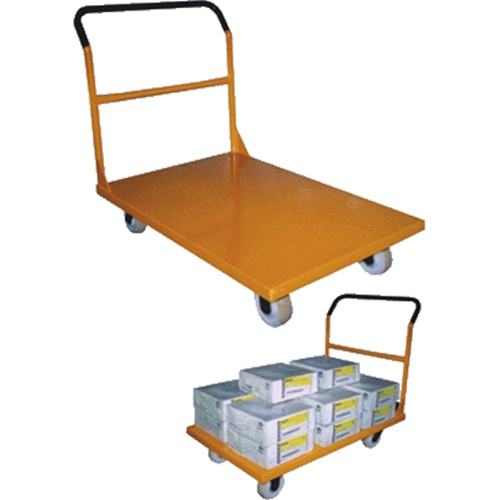

Platform Trolley

Sizes - 900 x 600, 1250 x 750, 1500 x 900 mm
These trolleys are extensively used for movement of corrugated boxes, gunny bags, heavy material, crates etc. within factories, godowns, stores & wear houses. The platform consists of 2.5 mm ms sheet on fabricated angle frame made of ms angle 40 x 40 x 2.5 mm.

MODEL900x6001250x750 1500x 900
Load carrying Capacity 750 Kg. 1000 Kg. 1250 Kg.
2 Fixed & Swivel Castors 150 x 50 mm 200 x 50 mm 200 x 50 mm

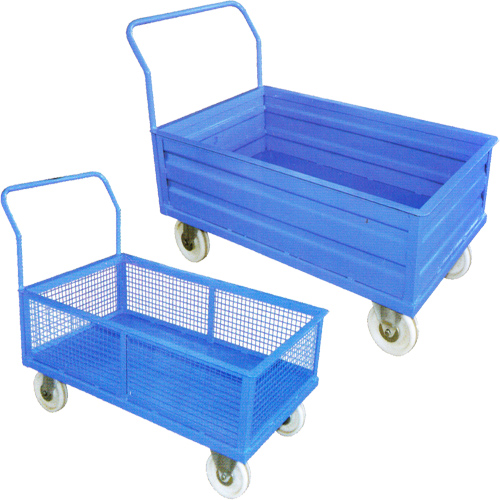

Work Shop Trolley

CAPACITY : 300 kg TO 1000 kg.
Workshop trolleys are extensively used for movement of loose components within factories, godowns, stores & wearehouses.

Size(LxW)Capacity
600x450mm 300kg
900x600mm 500kg
1250x750mm 700kg
1500x900mm 1000kg
